Vertical Entry Female RJ45 Lan Jack , Right Angle Rj45 Connector With Integrated Magnetics

Product Categories
ZHEJIANG SAK ELECTRONICS CO.,LTD
Contact Now

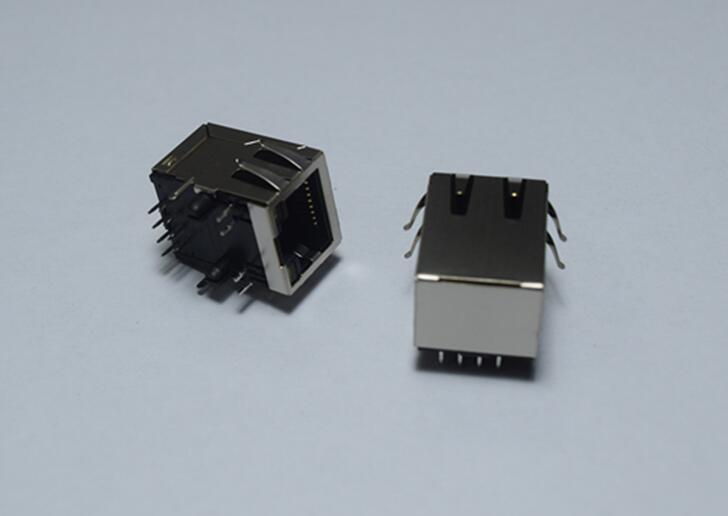

Vertical Entry Female RJ45 Lan Jack , Right Angle Rj45 Connector With Integrated Magnetics

  • 1
  • 2

Brand Name : XINGGE

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 2000 Piece/Pieces

Payment Terms : T/T, L/C, D/A, D/P, Western Union,PAYPAL

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : 2 weeks

Packaging Details : tray

Product Name : Single Gigabit rj45 LAN jack

Voltage Rating : 125 V AC(RMS)

Application : Switch,transceiver

Contact Plating : 1'-50u'

Housing Material : PBT Polyester

Rj45 Port : 1x1

Contact Now



Single Gigabit Right Angle / Vertical Entry Female RJ45 LAN Jack Integrated Magnetics



Specifications:





Electrical   Mechanical
Current rating: 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120V AC   4 contacts---500g
Insulation resistance: 500MΩ Min   6 contacts---750g
Withstand voltage: AC 1500 V RMS 50Hz or 60Hz 1 Min   8 contacts---900g
Contact resistance: 20mΩ Max   10 contacts---1050g
    Retention strength: 7.7Kg between jack and plug
    Durability: 750 mating cycles mini
Material
Housing: 1) glass filled PA66(ul 94v-0)
  2) glass filled PA46(ul 94v-0)
  3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
  2) 0.35mm thickness phosphor bronze alloy
  selective gold plating over nickel
Shielding: 0.2mm thickness copper alloy with tin plated
Gold plating : 3μ″,6μ″,15,μ″,30μ″,50μ″
Working temperature -110


Material


Insulator: High Temp Nylon flammability rating UL94V-0. Available in black, yellow, blue, and red
Contacts: Phosphor Bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area
Shield: Copper alloy with nickel plating
LED: Tin plating on LED tail. Epoxy lens.





Application



LED TV, SMart TV , STB ,computer , Modem,Router, net splitter and so on...

socket rj45


Mechanical

  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Length:18.75mm

Vertical Entry Female RJ45 Lan Jack , Right Angle Rj45 Connector With Integrated Magnetics
