Shield Network Rj45 Connectors Plug With Magnetics 180 Degree For 10/100M Net Card

Product Categories
ZHEJIANG SAK ELECTRONICS CO.,LTD
Contact Now

Shield Network Rj45 Connectors Plug With Magnetics 180 Degree For 10/100M Net Card

Brand Name : XINGGE

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : Guangdong, China (Mainland)

MOQ : 500 PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 40000 per day

Delivery Time : Lead-time 5-10 days

Packaging Details : 60pieces per tray

Type : RJ45 Female

LEFT LED : Yellow,RIGHT

Shield : Yes

LEDS : YES

LED : Green

Housing : Phenolic, PBT Black (UL94V-0)

Contact Now



LED Female RJ45 Connector Plug , RJ45 with Magnetics 180 Degree





Descriptions:



  • 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with top entry

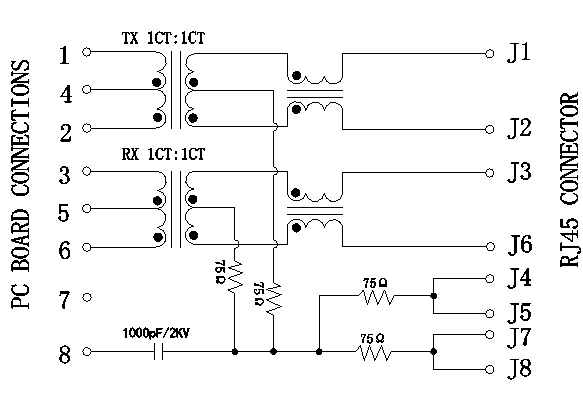

  • Single port 1X1 Tab-UP RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:Yes
  • Rohs compliant
  • Length:16.00mm
  • LEDS:YES
  • LEFT LED:Yellow,RIGHT LED:Green
  • Usage:HY951180A,KRJ-181NL



Applications:



Integrated RJ45 connector main used to :



• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
